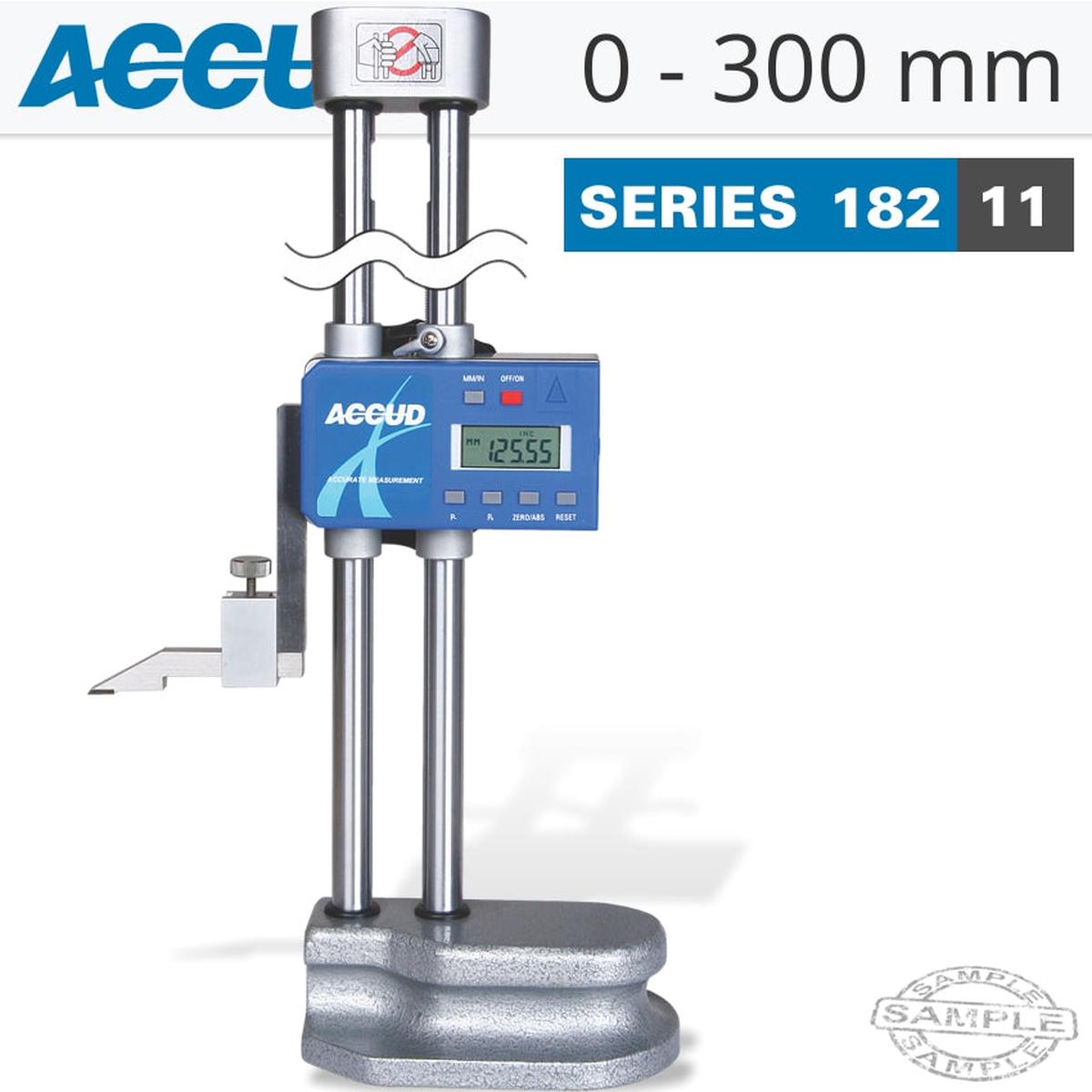

Two-column Digital Height Gauge 300 mm
SERIES 182-11
Manufacturer Cat No: 182-012-11
Digital Height Gauge with Data Output
Workshop electronic/digital two-column height gauge by ACCUD, measuring range 0-300mm | 12′ and resolution 0.01mm | 0.0005′.
The height gauge is equipped with ABS absolute measurement function, i.e. the ability to measure against the set zero value.
Adjustment is made by turning a guide knob on the back of the unit which also acts as the fine adjuster.
Made of stainless steel (except the base). Measuring tip – made of sintered carbide. Equipped with a data output port.
Made of stainless steel.
Features at a glance
- Made of stainless steel (except the base)
- Resolution: 0.01mm/0.0005′
- Buttons: on/off, inch/mm, ABS/INC, data preset, set data
- With driving wheel
- USB data output
- Optional accessory: 267 series clamps (not included)
- Carbide tipped scriber
- Functions: inch/mm, ABS/INC, data hold, tolerance set, data preset
Technical parameters:
| Description |
Spec |
| Measurement range: |
0-300mm / 12 in |
| Resolution: |
0.01 mm / 0.0005 ‘ |
| Accuracy: |
+/- 0.04 mm |
| Mm / inch switch: |
YES |
| ABS / INC function: |
YES |
| On / Off / Zero button: |
YES |
| Travel lock: |
YES |
| Fine adjuster: |
YES |
| HOLD function (hold result): |
YES |
| Data output socket: |
YES |
| Dimension a1: |
135 mm |
| Dimension a2 : |
43 mm |
| Dimension c : |
33 mm |
| Dimension d |
15 mm |
| Dimension h : |
84 mm |
| Dimension L: |
475 mm |
| Construction: |
stainless steel tracer tip – carbide |
